China SAE J1401 GB16897 Synthetic Rubber EPDM Brake Hose 1/8 Hydraulic Brake Hose Manufacturer Factory

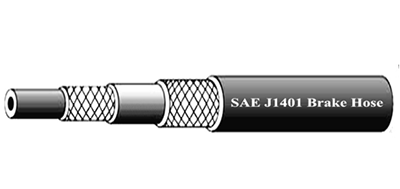

Construction:
- EPDM rubber inner hose
- Braided dipped Polyester Yarn
- EPDM rubber sheet
- Braided dipped Polyester Yarn
- Protective cover of EPDM rubber
| Specification | I.D. | O.D. | Wall Thickness | Burst Pressure | Working Pressure |
| inch | mm | mm | mm | Mpa | Mpa |
| 1/8'' | 3.2±0.2 | 10.5±0.3 | 5.1 | >80 | 3.65 |
| 3/16'' | 4.8±0.2 | 13±0.3 | 4.5 | >60 | 4.35 |
Features:
- High pressure resistance, lower volumetric expansion, flexibility, small bend radius,
- Aging resistance, oil resistance, cold resistance and long lifespan
Application:
Hydraulic brake hose act as a pressure transmission for automotive hydraulic brake system
Used for Cars, motorcycles,light trucks and other Light Heavy-Duty vehicles for hydraulic brake system.
Specification:
| NO. | Inner diameter | Outer diameter | Burst Pressure(Mpa) | Expansion Amount (ml/m) | Flexural fatigue test | Low temperature ℃ | Pulse Resistance 0-22Mpa | Ozone resistant 50±5pphm.40℃ |
| | | | | 6.9Mpa | 10.3Mpa | | | | |
| RBRH-A | 3.2±0.1mm | 10.5±0.2mm | ≥55 | | ≤1.15 | ≥35h | -55 | 150times | 70±2h |
| RBRH-B | 3.2±0.2mm | 10.5±0.2mm | ≥49 | ≤0.54 | ≤0.69 | ≥35h | -40 | 150times | 70±2h |
| RBRH-C | 3.2±0.2mm | 10.5±0.2mm | ≥49 | ≤1.08 | ≤1.38 | ≥35h | -40 | 150times | 70±2h |
Main application: Used in the brake and clutch pipeline system of various passenger vehicles such as cars, commercial vehicles, SUVs and mini cars
Technical Features: high temperature and pulse resistance, excellent flexing performance, stable and suitable expansion
Executive standard: GB16897-2010 SAE J1401 DOT
Hengshui Brake Hose Machinery Co. Ltd is a professional manufacturer of brake hose and fittings, located HengShui Citywhere produce 80% brake hoses in the world.Since 2005, HSBRK focused on the development and production of various types of brake hose and fittings .In the passed 17 years ,we master abundant mature technology on the stainless steel wire braiding,PU/PVC coating,brake hose assembly crimping and assembly pressure test.Now we are producing the PTFE brake hose 20,000meters and brake hose assembly 5000 pcs per day .
